JBL's VerTec® Series Line Arrays lead the industry in large venue sound reinforcement. While intended for smaller venues than VerTec, the VRX900 Series Constant Curvature Line Arrays are designed and built to the same high standards and uses the same advanced, concert-proven drivers. JBL's VRX900 Series speakers deliver extraordinary power handling, clarity, flexibility and, of course, stunning JBL sound in an attractive, easy to handle and affordable package.

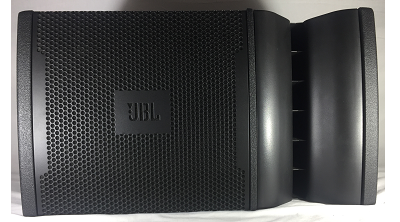

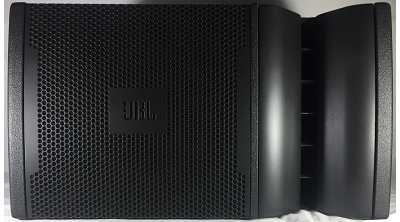

The VRX932LA-1 is a light-weight 46 lb. compact 12" two-way line array speaker system designed for use in arrays of up to six units.
Features:
· VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers
· The 2408 represents the latest in JBL Professional compression driver design
· Constant Curvature waveguide for unprecedented array coherence
· JBL’s exclusive neodymium magnet Differential Drive® woofer for light-in-weight, high-power capacity

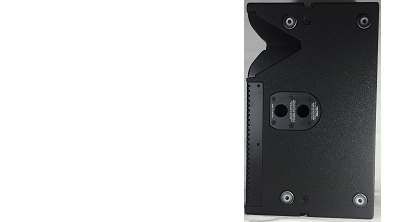

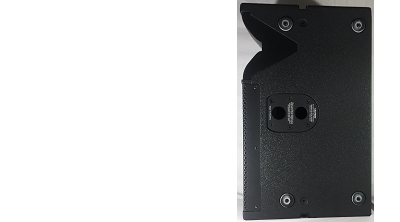

· Dual angle pole socket for aiming flexibility

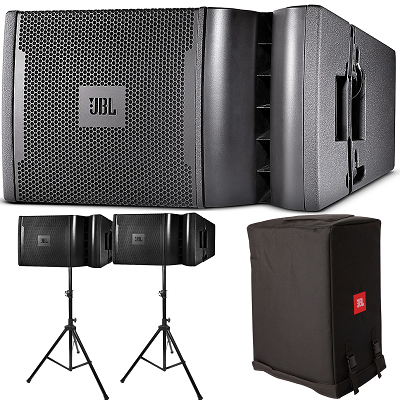

· One or two speakers may be mounted to a tripod stand

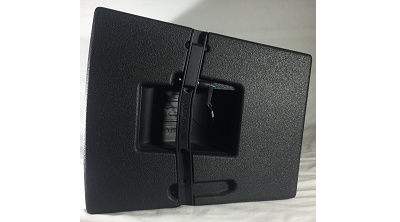

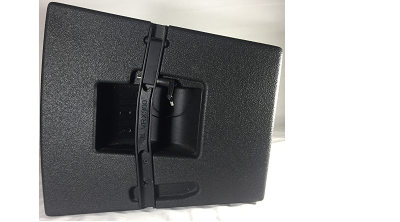

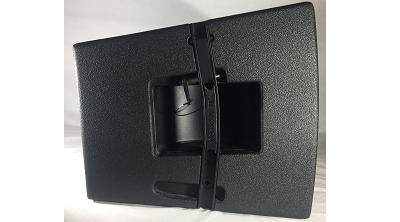

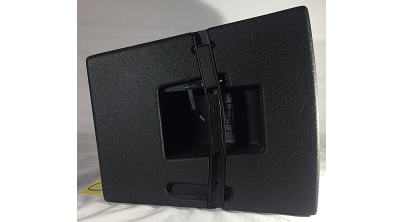

· Integral rigging hardware for simple connection of enclosures and optional array frame
· Arrays of up to six enclosures may be flown
· Array Configuration Selector permits “array shading” in passive mode. (software download available)
Specifications:Accessory That's Included In The Price:
Power Rating: 800 W / 1600 W / 3200 W
Frequency Range: (-10dB) 57 Hz - 20 kHz
Dimensions: (H x W x D) 13.5in x 23.5in x 14.8in
Frequency Response: (±3 dB) 75 Hz - 20 Hz
Coverage Pattern: 100 x 15 nominal
Crossover Modes: Bi-amp / passive, externally switchable
Crossover Frequency: 132 dB SPL peak 1.2 kHz
Maximum SPL: (1m) 130 dB SPL peak (passive mode)
Low Frequency: 130 dB
High Frequency: 139 dB
Sensitivity Passive: 95 dB SPL Bi-amp LF: 95 dB SPL Bi-amp HF: 114 dB SPL
LF Driver: 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps
HF Driver: 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver
Nominal Impedance: Passive = 8 ohm
Bi-amp: LF = 8 ohm
Bi-amp: HF = 8 ohm
Active Tunings: Tunings available at www.jblpro.com
Enclosure: 18 mm, 11-ply birch plywood
Suspension/Mounting: Optional VRX932LA-AF line array frame kit
Finish: Black DuraFlex™ finish
Grille: Power coated, black, 16-guage perforated steel with with acoustically transparent foam

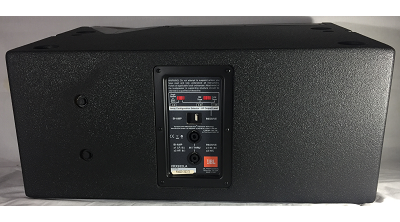

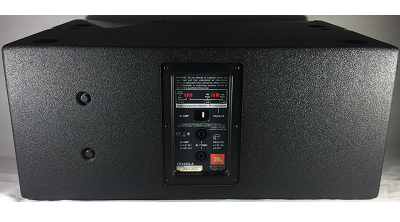

Inputs: Neutrik® Speakon® NL-4 (x2)
Net Weight: (each) 21 kg (46 lb)
Optional Accessories: VRX932LA-AF: Suspension array frame SS2-BK: Tripod speaker stand SS3-
BK: Satellite speaker pole is extra price see Adjustable satellite speaker pole to be used with the SRX718S below
Outputs: 1 x XLR
System Type Constant: Curvature 12" Two-Way Line Array System
