Furman Power Conditioner & Overload Protection with Voltmeter

$200.00

Power Conditioner
Model# PL-PLUS SERIES II

Power Conditioner with Voltmeter and Overload Protection includes Over & Under Voltage Protection also Retractable Dimming Front Lights and a handy back of Rack Light.
đź’€ A Blond Melon Favorite

Step up to power protection with voltage monitoring capabilities for sensitive equipment. The Furman PL-Plus II Power Conditioner with Voltmeter is all about safety for your expensive pro audio equipment. An advanced Series Multi-Stage Protection Plus (SMP+) circuit provides rock-solid, maintenance-free extreme surge suppression with zero ground contamination thanks to Linear Filtering Technology (LiFT). A front-panel meter provides precise monitoring of incoming AC line voltage from 90 to 128V. Unit has 8 rear-panel outlets and one front-panel outlet, a 15-amp rating with circuit breaker, retractable LED rack lights with on/off/dimmer control, BNC back-panel connector for gooseneck lamp with front-panel switch, and a front-panel circuit breaker. Fits in one rack unit and comes with a 10', 14-gauge, heavy-duty power cable.

Furman's Series II power conditioners feature the Series Multi-Stage Protection Plus (SMP+) circuit and the exclusive Linear Filter Technology (LiFT). The maintenance-free SMP+ surge suppression handles the most extreme transient voltage spikes are safely absorbed, clamped, and dissipated without destruction of the circuit. LiFT takes ensures optimal performance through linear filtering with no leakage to ground, protecting the audio and video quality of your signal.

Series II units have super-bright, long-life, retractable dimmer controlled LED rack lights that produce virtually no heat and provide an extremely long life span. There is an on/off/dimmer control for the lights. A BNC back-panel connector will accommodate a gooseneck lamp for rear-rack illumination. A front-panel switch controls the gooseneck's operation. The Series II units occupy one rackspace each and have a convenient front-panel mounted outlet.

A master switch controls operation of the rear outlets, and the front-panel circuit breaker can be quickly and easily reset should the unit be overloaded.

Features:
Maintenance-free surge suppression
Series Multi-Stage Protection Plus (SMP+) circuit with extreme voltage shutdown
LiFT (Linear Filtering Technology) with zero ground contamination
8 rear-panel outlets and one front-panel outlet
15-amp rating, with circuit breaker
Meter for line voltage ranging from 90 to 128V
Retractable LED rack lights with on/off/dimmer control
BNC back-panel connector for gooseneck lamp with front-panel switch
Master switch control of rear outlets
Front-panel circuit breaker
One rackspace
10', 14-gauge, heavy-duty power cable

Specifications:

Dimensions: 		1-3/4"H x 19"W x 10-1/2"D
Weight: 11 lbs. (5 kg)
Construction: Steel chassis, .125" brushed and black anodized aluminum front panel; glass epoxy printed circuit boards
Current rating: 15 amps
Operating Voltage: 90 to 140 VAC
Over Voltage Shutdown: 140 VAC typically
Voltmeter Accuracy: PL-PLUS II only: ±2 VAC, calibrated with internal trimpot adjustments
Spike Protection Modes: Line to neutral, zero ground leakage
Spike Clamping Voltage: 188 VAC peak @ 3,000 Amps, 133 VAC RMS (tested to UL-1449 and USA/CIDA A-1-1, 6,000 VAC @ 3,000 Amps)
Response time: 1 nanosecond
Maximum surge current: 6,500 amps
Noise attenuation: 10dB @ 10kHz, 40dB @ 100kHz, 100dB @ 10MHz”Linear attenuation curve from 0.05 - 100 Ohms line impedance
Power consumption: 11W
Safety Agency Listings: CE, NRTL-C
Used – Like New

Same Day Shipping - Ships from Blonds personal stash
Located in: New Orleans, Louisiana, United States

Handling Cost:
$20.00 will be added on items over 30lb
$50.00 will be added on items over 100lb
Free local pickup

Shipping: Calculate

make an offer




Slide 1 / 6
Protect your audio and video quality
Slide 2 / 6

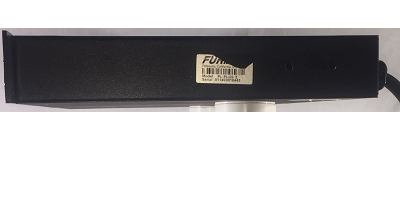

Model and seriel numbers
Slide 3 / 6

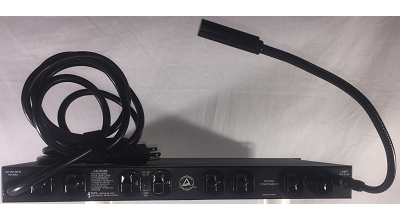

Gooseneck light with front panel switch
Slide 4 / 6

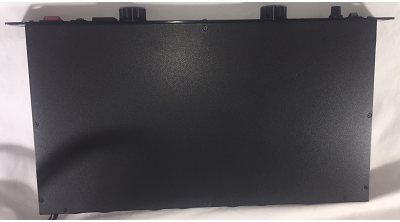

Very nice condition
Slide 5 / 6

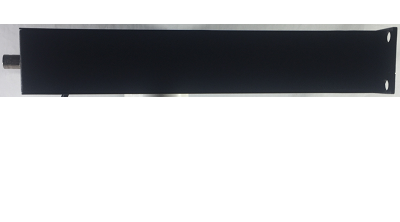

No scratches
Slide 6 / 6

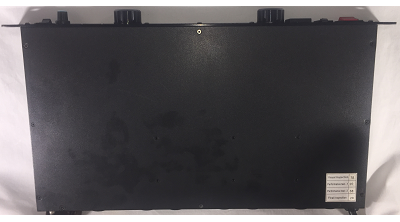

Just my finger prints
