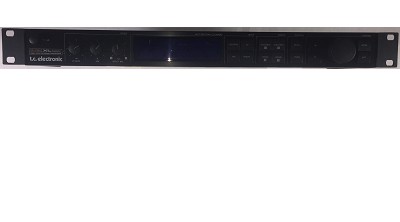

tc electronic XL Technology 24-Bit Dual Engine Signal Effects Processor

$200.00

Model# M-One XL

Dual-Engine Signal Processor with High-Quality Reverb and Multi-Effects for Live or Studio Applications
💀 A Blond Melon Favorite

Studio & Post production M-ONE XL
M-ONE XL is a dual effects unit, perfectly designed for LIVE applications. The reverbs truly shine, but it also features lots of other pristine effects such as Compressor, Chorus, Delay, Gate, etc.

• XL Technology - Based on their Renowned Reverb Heritage
• High-quality Multi Effects - Reverb, Delay, Chorus, Flanger, Compressor, Gate, etc.
• Flexibility - Perfect for LIVE applications as well as in the STUDIO

XL Reverb Technology
The XL Technology is based on their heritage and research and development of Reverb technology. XL Reverbs give you new and improved spatial perspectives across the entire range of Reverb algorithms.

The extended range of the 'reverb size' enables extremely wide or narrow spatial imaging, independently of the decay time. By applying 'Reverb size' to both Early Reflections and the Diffused Field, M-ONE XL achieves any combination from wide spaces with short decay times to narrow rooms with long decays.

The XL Technology also stands out by applying sophisticated modulation patterns, simulating the modulation of a real room and allowing ranges of modulation from the barely audible real-room modulation to heavy chorusing and detuning reverbs, also simulating the vintage style of reverbs.

In short, you will get a natural and clear result that no other processor in this price range is able to provide.

Small Room Simulation
Simulations of Small Rooms have been a major focus in the tuning of the XL Reverbs. The Early Reflection patterns combined with the XL's set of Diffused Fields allows for realistic simulations of real rooms.

If you apply it to source material the room simulations will bring clarity and presence to the source. With the flexibility of the XL Technology, your can tweak the reverbs from virtually transparent Ambience patterns over large Hall Reverbs to low-resolution Plates or Spring reverbs with ease.

Reverb Types
M-ONE XL offers you all the great types of reverb you need for live performances or in the studio. Depending on the application, you can go for Live, Hall, Room or Plate.

Hall
These 'classic' reverbs simulate the reverberation of very large rooms with high ceilings. They have unobtrusive reflections with a density and naturalness you have only been dreaming of until now. The Hall reverbs are particularly great-sounding for vocals, acoustic guitar and piano.

Room
Room reverbs generate a vast array of room settings with different sizes and surfaces. The Room reverbs will make your music come alive by adding ultimate realism and texture to your mix.

Live
The Live algorithms are the grainy type of reverbs known as the typical 1980s live reverbs. Use these reverbs whenever you need the extra edge to really 'cut through' any PA system.

Plate
The most basic-sounding reverbs in the M-ONE XL are the 'non-digital', mechanical-sounding ones, which eIiminates the need for metal plates: Create the artificial reflections typically found on 'old mechanical' reverbs! Plates 1 & 2 are particularly good for drums and vocal tracks.

Presets
M-ONE XL comes with 200 high-grade Factory Presets, covering any application imaginable. On top of that, you can stores up to 100 of your favorite presets in the User Bank. When you are satisfied with your preset, just hit the STORE key to save it. It's so simple that you almost forget you are actually making presets!

How to...
M-ONE XL will handle all of your reverb needs with ease and the range of applications is comprehensive and we have gathered a few tips for three common situations below.

Lead Vocals
Dominating vocals are often supported by a well-tuned Hall and maybe even some delays. However combining these two effects in the perfect mix can be a bit of a challenge.

The fact that Delay repeats continue to repeat the original dry source even after the Reverb has decayed, it makes the delay stand out as a separate effect.

Using the M-ONE XL 'Parallel/Serial' routing allows you to use both Delay, with the accurate tap control and high-density Reverbs with independent inputs and simultaneously feed the Delay repeats into the Reverb, allowing a greater integration of the two effects.

Ambient Vocals
Getting the lead vocal to sound both crisp and present in a live mix is not always as easy as it sounds.

If you merely turn up the volume, keeping a neutral frequency response will make the vocal 'float' on top of the music, which is not very flattering to the vocals.

Instead, try to use the 'Ambience' Reverb of the M-ONE XL. The high-density Early Reflections and short decays will add sufficient brightness and shine to the vocal without compromising the frequency response.

Drums
Making a drum kit in general or a snare drum in particular stand out using reverbs has been common in Pop/Rock for many years. In the studio, where listening conditions are perfect you have a number of choices. Achieving the same effect in a Live situation is quite a different story.

High-density reverbs tend to disappear in a PA system so try to use the ‘Live’ reverb of M-ONE XL. It will give you exactly the level of graininess necessary to achieve this particular effect. The ‘Live’ Reverb works extremely well for short and snappy snare reverbs as well as big ballad 3.0 second Tom reverbs.

Specification:

Digital Inpits/Outputs	RCA Phono (S/PDIF)
Formats			S/PDIF (24 bit), EIAJ CP-340, IEC 958
Output Dither		HPF/TPDF dither 24/20/16/8 bit
Sample Rates		44.1 kHz, 48 kHz
Processing Delay	0.1 ms @ 48 kHz
Frequency Response DIO	DC to 23.9 kHz ± 0.01 dB @ 48 kHz
Analog Inputs		XLR, balanced
Impedance, Bal / Unbal	21 kOhm / 13 kOhm
Max. Input Level	+24 dBu
Min. Input 0 dBFS	0 dBu
Sensitivity		-12 dBu to +12 dBu
A to D Conversion	24 bit, 128 x oversampling bitstream
A to D Delay		0.65 ms / 0.70 ms @ 48 kHz / 44.1 kHz
Dynamic Range		100 dB typ, 20 Hz - 20 kHz
THD			typ < 92 dB (0,0025 %) @ 1 kHz
Frequency Response	+0/-0.1 dB @ 48 kHz, 20 Hz to 20 kHz
Crosstalk		<-95 dB, 20 Hz to 20 kHz
Analog Outputs		XLR, balanced
Impedance Bal/Unbal	40 Ohm
Max. Output Level	+20 dBu (balanced)
Output Ranges Balanced	20/14/8/2 dBu Unbalanced: 14/8/2 dBu
D to A Conversion	24 bit, 128 x oversampling bitstream
D to A Delay		0.63 ms / 0.68 ms @ 48 kHz / 44.1 kHz
Dynamic Range		104 dB typ, 20 Hz to 20 kHz
THD			typ <-94 dB (0.002 %) @ 1 kHz, +20 dBu Output
Frequency Response	+0/-0.5 dB @ 48 kHz, 20 Hz to 20 kHz <-100 dB, 20 Hz to 20 kHz
EMC Complies with	EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B Formats: S/PDIF (24 bit), EIAJ CP-340, IEC 958
Safety Certified to	IEC 65, EN 60065, UL6500 and CSA E60065 CSA FILE #LR108093
Env Ops Temp		32° F to 122° F (0° C to 50° C)
Storage Temperature	-22° F to 167° F (-30° C to 70° C)
Humidity		Max. 90 % non-condensing
Control Interface 	MIDI In/Out/Thru ~ 5 Pin DIN
Pedal			1/4" phone jack
General Finish		Anodized aluminum front. Plated and painted steel chassis
Display			23 character / 280 icon STN-LCD display
Dimensions		19" x 1.75" x 8.2" (483 x 44 x 195 mm)
Weight			4.1 lb. (1.85 kg)
Mains Voltage		100 to 240 VAC, 50 to 60 Hz (auto-select)
Power Consumption	<15 W
