Ashly MOS-FET full frequency auditory sensations spectrum Amplifier

$240.00

Model# FET-1000M

Go way beyond Bass, Middle and Treble breaking down the Frequency Spectrum with Boosts that are so broad that their effects radiate down through the Auditory Sensation Causeing a Subtle Transparent Increase in the Sense of “Air” in the Mix
💥 This is Amplifier two of two

During its first decade this original FET Series became a standard for applications requiring the utmost in sonic excellence and extreme reliability, with better specifications than ever before. Features LED meter band balanced XLR or 1/4" inputs. This design is intended for demanding sound reinforcement, broadcast facilities, recording studios, or any application where visual monitoring and interfacing with balanced equipment is essential. Designed to meet the needs of professional industrial installations such as theater, public address and stadium use. In these situations meters and XLR inputs are not typically required, so its supplied without meters and utilizes barrier strip and 1/4" inputs.

Simple, stable circuitry produces better sound, this amplifiers use a complementary, all-discrete design. The driver is pure class-A and, because it has only two stages, requires little compensation allowing both speed and linearity with no crossover notch distortion. The output stage consists of paralleled power MOS-FETs for current gain. The MOS-FETs have smooth Tran-conductance curves and run at a relatively high idle current, again preventing crossover notch distortion. They require no dissipation limiting protective circuitry and provide virtually infinite power gain, keeping load reflections from the driver stage. This promotes stability and low distortion when driving reactive loads like loudspeakers. These are the Amplifiers that I used to power the YAMAHA Floor Monitors.

Special attention is paid to overload performance:
if the amp is overdriven, it will clip cleanly with a slightly rounded edge totally free from spikes and glitches. Total immunity to power supply variations insures that transient distortions are never generated on program material with wide dynamic range.

The result:
powerful and quick amplifiers that deliver unrestrained, uncolored sound quality with remarkable accuracy.

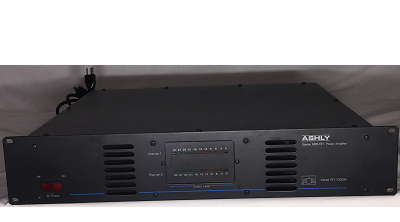

The power amplifier, being of two channels, will deliver a minimum power of 100 watts per channel Into 8 ohm loads or 160 watts per channel Into 4 ohm loads with both channels operating. When switched Into bridged mono mode. It will deliver at least 200 watts into a 16 ohm load or 320 watts Into an 8 ohm load. The amplifier is immune to damage from shorted, open, or mismatched loads. The amplifier has a gain of 26dB ± ,5dB per channel and an Input sensitivity of 1.4 Volts ± 2% for full rated output. Frequency response is at 10Hz to 20kHz ± .5dB. Its stable Into any load Including pure capacitors and indicators. Hum and noise is at least >110dB below full output and SMPTE intermodulation distortion is less than .004% at full output. The amplifier has rear panel switching for mono and bridging modes and rear mounted level controls, balanced inputs are bridging type with male and female XLH type connectors as well as 1/4 " phone Jacks. A three-color LED type Indicator are employed to show the power level of each channel and a self contained forced air cooling fan.

Specifications:

Power Output
__________________________________________________________
	EIA Specification
    (± 1dB<1% THD 20Hz-20kHz)
   STEREO (Rated Per Channel)
		      4 ohms:	190 Watts RMS
		      8 ohms:	120 Watts RMS
	        MONO BRIDGED
		      8 ohms:	380 Watts RMS
	  FTC Specification
  (min power <.01% SMPTE IMD)
   STEREO (Rated Per Channel)
		      4 ohms:	160 Watts RMS
		      8 ohms:	100 Watts RMS
	        MONO BRIDGED
		      8 ohms:	320 Watts RMS
__________________________________________________________
   Total Harmonic Distortion:	.004% 1kHz,8Ω
				.01% 20Hz,8Ω
				.05% 20Hz-20kHz,8Ω
       IM Distortion (SMPTE):	.004% 8Ω
		       (IHF):	.01% 8Ω
__________________________________________________________
	      Damping Factor:	>100 20Hz-20kHz
		   Bandwidth:	100kHz
		   Slew Rate:	50V/μS
	  Frequency Response:	± .5dB 10Hz-50kHz
		   Rise Time:	2μS 10%-90%
Full Power Input Sensitivity:	1.4V
	       Hum and Noise:	>110dB below full output
	  Power Requirements:	110-125VAC, 50-60Hz
			Size:	19"L x 3.5"H x 16"D
	     Shipping Weight:	42 lbs
