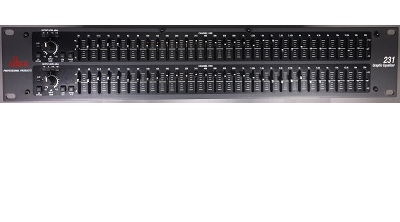

dbx by Harman Professional 31-Band Graphic Equalizer

$120.00

Model# DBX231V

Stereo 31-Band Graphic Equalizer with a Line Boost of +12 db TRS or XLR In/Out Interconnect

With a lineage extending back to the revered 12 and 20 Series graphic equalizers, the dbx® 231 easily lives up to the dbx reputation. Besides including two 31-band channels of 1/3-octave equalization, the EQ also offers ±6 or ±12 dB boost/cut range; XLR, 20mm faders and 1/4" inputs; nonconductive nylon sliders; and an intuitive user interface with comprehensive output and gain reduction metering. As always, the inevitable result of our meticulous attention to detail and top-quality componentry is exceptional sound, performance, and reliability.

The 2-Series represents a major step forward in the performance of entry-level graphic equalizers. From its amazing 10Hz to 50kHz frequency response, to its 108dB dynamic range and internal toroidal transformer, the 2-Series offers out of this world specifications. Sure to find a home in the studio, on tour and with installed sound venues, the 2-Series is destined to take its rightful place in the lineage of great dbx® signal processors that are the Professional's Choice™. With such affordable quality, there's no longer any excuse for compromising your sound.

Features:
Two 31-band, 1/3-octave Constant Q frequency bands
Switchable boost/cut ranges of ±6 or ±12 dB
12dB per octave 50Hz low-cut filter
Front panel bypass switch
±12 dB input gain range
4-segment LED ladders for monitoring output levels
XLR and TRS Inpts and Outputs
Internal Toroidal Transformer
Frequency Repsonse of <10Hz to >50kHz
Dynamic range of greater than 108dB

Specifications:

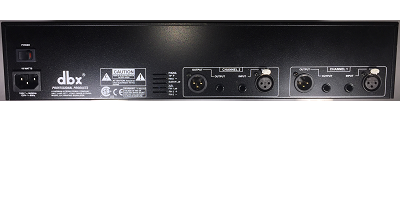

Input Connectors:	1/4" TRS, female XLR (pin 2 hot)
Input Type:		Electronically balanced/unbalanced, RF filtered
Input Impedance:	Balanced 40k ohm, unbalanced 20k ohm
Max Input:		>+21dBu balanced or unbalanced
CMRR:			>40dB, typically >55dB at 1kHz
Output Connectors:	1/4" TRS, male XLR (pin 2 hot)
Output Type:		Impedance-balanced/unbalanced, RF filtered
Output Impedance:	Balanced 100 ohm, unbalanced 50 ohm
Max Output:		>+21dBu balanced/unbalanced into 2k ohm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
Bandwidth:		20Hz to 20kHz, +0.5/-1dB
Frequency Response:	<10Hz to >50kHz, +0.5/-3dB
Dynamic Range:		108dB
Signal to Noise Ratio:	90dB
THD+Noise:		<0.004%
Interchannel Crosstalk:	<-80dB, 20Hz to 20kHz
Bypass Switch:		Bypasses the graphic equalizer section in the signal path
Low cut Switch:		Activates the 50Hz 12dB/octave high-pass filter
Range Switch:		Selects either +/- 6dB or +/-12dB slider boost/cut range
Operating Voltage:	100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
Power Consumption:	15W
Power Connector:	IEC receptacle
