Yamaha Two Channel Compressor/Limiter Puts the Thump in da’ Bass

$90.00

Model# GC2020BII

Stereo All-In-One Noise Gate Compressor Limiter Extremely Tight Responses Great Clean Sound in Either Mono or Stereo mode
💀 A Blond Melon Favorite

The Yamaha GC2020 is a high-performance 2-channel compressor/limiter that can be effectively used in recording, sound reinforcement, and other production applications. It offers a wide variety of control features for precise tailoring of compression and limiting parameters, and it also features an expander type noise gate in each channel for effective noise reduction.

Offering all of this with exceptionally high audio quality – full 20Hz to 20kHz frequency response and no more than 0.03% total harmonic distortion. Operation can be carried out either in stereo mode or, using the link switch, in dual mono mode, allowing to completely different signals to be processed using independent compression or limiting characteristics. A minor revision came out in 1986 on this GC2020BII I have here for sale.

Features:
• A full 20Hz-to-20kHz frequency response with no more than 0.03% THD at maximum output.
• Switch selectable dual-mono and stereo modes.
• Comp In/Out switches on both channels; activates or bypasses compression/limiter circuitry; LED indicates status.
• Expander Gate with a variable threshold level on each channel eliminates background hiss and noise during no-signal portions of a program.
• A 5-segment LED meter on each channel indicates how much compression or limiting is being applied.
• Separate adjustments on each channel provide precise threshold control
• Variable compression controls on each channel provide precise tailoring of compression ratio.
• Variable attack and release-time adjustments on each channel provide natural sound with a wide variety of signals.
• Input and Output level controls on each channel give broad compatibility with professional equipment.

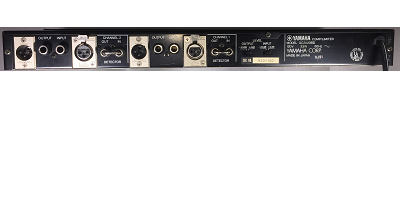

• Input and Output connections utilize both standard 1/4" phone jacks and XLR balanced connectors.
Used – Good
