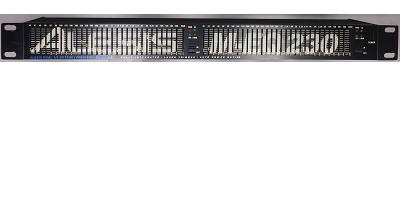

Alesis 60-Band Full Range Graphic Equalizer

$80.00

Model# M-EQ 230

Dual 1/3 Octave Precision 30 Band Graphic Equalizer with Volume Controls Perfect for Guitar or Keyboard Precise Tone Adjustment
💀 A Blond Melon Favorite

One of the most popular EQ’s ever made, especially for home studios and club bands. With two 30-band 1/3 octave EQ’s in a single rack space. This precise EQ is engineered with proprietary technology that gives you more features and better audio performance, Features both RCA and 1/4″ in/outputs, signal and peak indicator as well as “in” and “power” LED’s for both channels, channel in/out buttons and center-detent sliders at +/- 12dB. These cost a couple hundred back in the 90’s and are the best bargain today. This one’s in beautiful shape with original power supply.

offering two independent 30-band 1/3 octave graphic equalizers in a compact, single rack space package, which features a relay based power-up delay switching circuit to eliminate turn-on transients in sound systems. Each channel features 30 bands of 1/3rd octave equalization with ANSI and ISO standard center frequencies. Each band is adjusted by a center-detent fader with 12dB of gain available, and a master fader controls system gain for that channel. Clip and signal present LEDs, as well as a bypass switch, are also provided on each channel. Inputs and outputs for each channel are via both 1/4"TS and RCA jacks.

Features:
• Two complete 30 band 1/3 octave equalizers in 1 rack space
• Power up delay circuitry protects speakers by eliminating turn-on transients
• 12dB boost or cut per band
• Each channel can be bypassed individually
• Clip and signal present LEDs for each channel
• Inputs and outputs via both 1/4" phone and RCA jacks Applications
• Feedback control in sound systems
• Feedback control in stage monitor systems
• Timbre contour of musical instruments
• Room voicing
• Special sound effects

Specification:
Frequency Response: 	+0dB -1.5dB 20Hz to 20kHz
Nominal Level: 		0dBV
Dynamic Range: 		107dB A-weighted
THD + Noise: 		less than 0.005 @ 0dB 20Hz - 20kHz
Gain: 			0dB (unity), EQ bypassed
Max. Voltage Gain: 	+12dB
Indicator LEDs: 	Power "on" - red, Signal Present - green, In/Out - green, Peak Indicator - red (turns on when instantaneous level is +18dB)
Controls: 		25 / 31 / 40 / 50 / 62 / 80 / 100 / 125 / 160 / 200 / 250 / 320 / 400 / 500 / 640 / 800 / 1k / 1.3k / 1.6k/ 2k / 2.5k / 3.15k / 4k / 5k / 6.2k / 8k / 10k / 13k / 16k / 20kHz level controls, In/Out switch, +/-12 dB Input Level control
Range Of Boost/Cut: 	+/-12dB
Input Impedance: 	500k ohms (unbalanced)
Output Impedance: 	240 ohms (unbalanced)

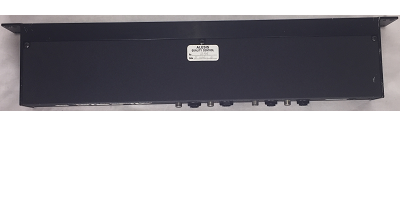

Input/Output Jacks: 	1/4" L/R, RCA L/R
Power Requirements: 	120 VAC 60Hz, UL and CSA Approved external transformer
Dimensions (W x H x D): 19 x 1.75 x 4 in.
Weight: 		2.5 lbs.
