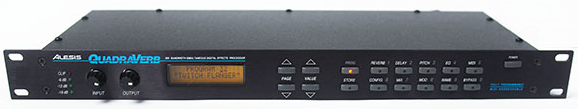

Alesis Four Digitally-Controlled Stereo Programmable Effects Processor

$250.00

Stereo Effects
Model# QuadraVerb

Fully Programmable Stereo Processor Rack-Unit with Four Digitally-Controlled effect chain that can be used in either series, parallel, or in combination. It has real-time controls of up to 8 parameters via MIDI, and stores up to 100 programs.

As its name implies, the unit can produce four effects at a time the Digital Effects Processor has four building blocks that can be used simultaneously: EQ, Pitch Change, Reverb & Delay. These can be used in parallel or serial fashion to create effect chains which can be stored as presets. The effects can be used in parallel or in serial (or a combination). Conversion scheme is 16-bit linear PCM. It's fully MIDI-ready. Specs say the dynamic range is 85dB, less than .1% distortion. Processor speed is 24 MIPS (no Z80 in this baby!). Conversion scheme is 16-bit linear PCM. It's fully MIDI-fied.

Features:
· Touch sensitive (multi-speed!) programming buttons. If you press harder you move the parameter faster.
· 2x16 character LCD display. Display replacement upgrade has been performed.
· Stores 100 programs. Comes with 90 (in ROM) that you can overlay into the RAM. At any time you can recall one or all the ROM programs into RAM.
· Real-time control of 8 simultaneous parameters via MIDI (you pick the controller type and the parameter it controls).
· All functions, parameters and volume levels are programmable per program.
· Stereo In/Out (via four 1/4 inch jacks).
· Effect bypass jack on the back (as well as a button on the front).
· You can name your programs (up to 14 characters).
· Comes with the original power supply and owners manual.

Specification:
Frequency Response 16Hz-20kHz
Dynamic Range 85dB
Distortion 1% typ. 1k OdB
Signal Levels Input -10 - +20dBv peak
Output wet +14dB
Output dry + 20dB
Input Impedance 1 Megohm each channel
500kOhm mono
Processor Speed 24,000,000 instructions per second
Conversion Scheme 16-bit linear PCM
Used – Very Good

Same Day Shipping - Ships from Blonds personal stash
Located in: New Orleans, Louisiana, United States

Handling Cost:
$20.00 will be added on items over 30lb
$50.00 will be added on items over 100lb
Free local pickup

Shipping: Calculate

make an offer
