DigiTech Twin Tube Foot Controller and cable

$160.00

This price is the approximant value of this part only

Package Price Page

This item is part of a package and not sold separately.
The package consists of this item and the Twin Tube GFX-1
Effects rack Unit. The above link is the price breakdown.

Foot Controller
Model# GFX-1F

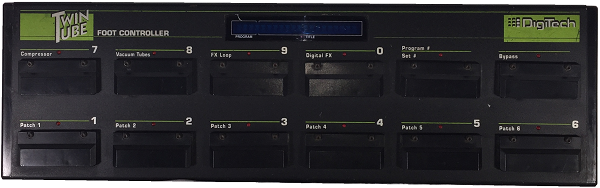

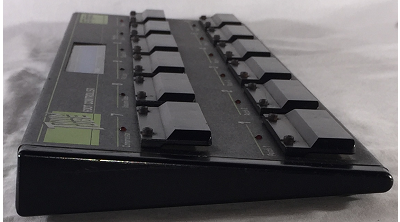

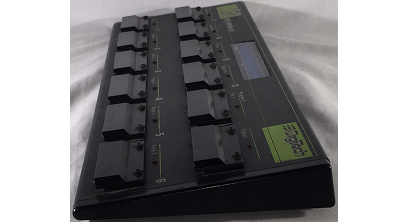

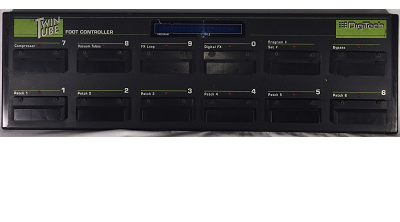

Twin Tube GFX-1F Foot Controller and cable used for controlling the GFX-1 Rack Mount Preamp
💀 A Blond Melon Favorite

Twin Tube GFX-1F Rack Mount Preamp Foot Controller and cables
This is the foot controller that belongs with the Twin Tube effect processor I consider it the best stomp box ever made, and the only one I needed with its big bright display, very bright red indictors and best of all only one cord to connect it to the pre amp effects unit, totally programmable See details below...

Display			The 20 character vacuum fluorescent display is divided into two
			areas: the first three characters display the program number of
			the current patch, and the right-most sixteen characters display
			the title of the patch. The title mirrors the title that is stored in
			the main unit. In some modes, the display will issue prompts to
			the user rather than the program title.
			(Due to incompatibilities of the display types, certain characters .
			look different on the Foot Controller display than on the front
			panel of the TWIN TUBE).

Bypass			The right-most switch in the upper row bypasses the entire unit,
			the same way as the front panel BYPASS switch. The BYPASS
			LED will light while the unit is bypassed.

OPERATING MODES		The TWIN TUBE Foot Controller operates in two modes, Six Patch
			and Ten Patch modes. A Patch is the relationship between a
			Foot Controller button and a TWIN TUBE Preset. The
			function of most of the pedal switches depends on the current
			mode of operation. Choosing the mode that you want to use is
			done through the Utility Menu.

Six Patch Mode		These switches access any of six pre-programmed Patches from
Numbered		the current SET. The LED above the selected switch will light to
Switches 1 — 6		indicate the current Patch. If a PATCH switch is pressed when
(Patch 1 — Patch 6)	the corresponding Patch is already selected, the last Patch used
			will become the current Patch. In addition to choosing specific
			Program numbers, PATCH switches may be programmed to
			perform the repeat hold and effects loop bypass functions.

			There are 10 SETS of Patches available. To change to a different
			SET number, press the PROGRAM #/ SET NUMBER switch twice,
			then select a SET number with one of the numbered switches 1
			to 0 (zero is equivalent to #10)

Upper Row Switches	When in Six Patch mode, the upper 4 numbered switches enable
(Individual Effects 	and disable the indicated effect if that effect is available in the
Bypass)			current Patch. The LED above the EFFECT switch will light if the
			effect is active.

Ten Patch mode		In this mode, each of the ten numbered switches becomes a
Numbered Switches 1-0	PATCH (the switch numbered 0 corresponds to the tenth Patch).
			The rest of the functioning is the same as described in the Patch
			1 - Patch 6 section, except that the Effects Bypass function is not
			available on the lower switches.

Program Number		To randomly access any program in the TWIN TUBE, press the
Random Access		PROGRAM # / SET NUMBER switch once. The display will show:
Numbered Switches 1 - 0
Program number?
Enter the number of the program you wish to select. For example, to choose program 36: ° Press PROGRAM #/ SET NUMBER once ° Display reads "Program number?" ° Press numbered switches, in order, 0-3-6 The TWIN TUBE will go to program 36, then automatically return to the current Patch mode. Examples: For program 128, press 1-2-8. For program 45, press . 0-4-5 or 4-5. For programs starting with 0 or 1, such as 12, press 0-1-2 or 1-2 and wait two seconds, or 1-2-PROGRAM #/SET #. Programming All programming for the TWIN TUBE Foot Controller is done through the TWIN TUBE front panel programming buttons in the Utility mode. The Foot Controller menu in the Utility Menu allows the user to assign any program, the repeat hold function, or effects loop bypass to any of the six or ten Patches in each of the ten Sets, giving a total of sixty or one hundred patches. See the Utility Menu section of the manual (page 17) for details of programming in the Utility mode. Note: If you choose a SET with ten Patches, and then change to Six Patch Mode, Patches 6 through 0 (10) will still be there, but you won't be able to access them via the numbered switches until you change back to Ten Patch Mode.

Used – Very Good

Same Day Shipping - Ships from Blonds personal stash
Located in: New Orleans, Louisiana, United States

Handling Cost:
$20.00 will be added on items over 30lb
$50.00 will be added on items over 100lb
Free local pickup

Shipping: Calculate


make an offer
